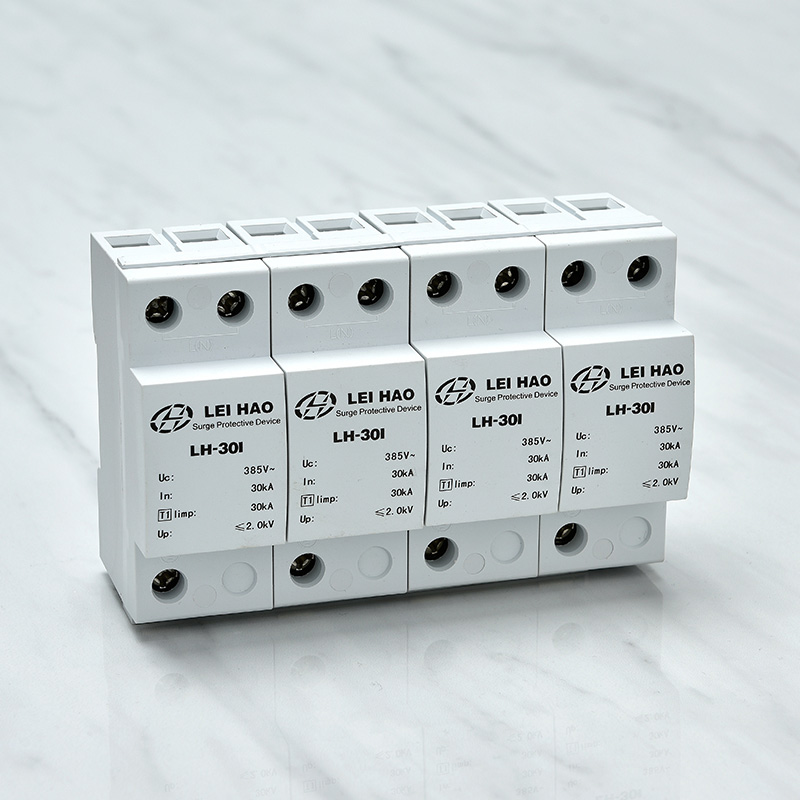

| Model | LH-12.5I | LH-15I | LH-20I | LH-25I | LH-30I | LH-50I |
| Maximum continuous operating voltage Uc | 275/320/385/440V~（Optional and customizable） | |||||
| Nominal discharge current In (8/20) | 12.5KA | 15KA | 20KA | 25KA | 30KA | 50KA |
| Impulse discharge current Iimp (10/350) | 12.5KA | 15KA | 20KA | 25KA | 30KA | 50KA |
| Protection level | ≤1.5/1.8/2.5/2.5KV | ≤1.5/1.8/2.5/2.5KV | ≤1.8/2.0/2.2/2.5KV | ≤1.8/2.0/2.2/2.5KV | ≤2.0/2.2/2.5/3.0KV | ≤2.0/2.2/2.5/3.0KV |
| Optional appearance | Full arc, half arc, window, no window, word, no word (optional, can be customized) | |||||
| Built-in chip, graphite, remote signal, | Graphite, chip Can add remote letter | Graphite, chip Can add remote | graphite | graphite | graphite | graphite |
| Working environment | -40 ℃~+85℃ | |||||
| Relative humidity | ≤95％（25℃） | |||||
| Colour | White, red (optional, customizable) | |||||
| Remark | Power surge protector, suitable for three-phase five-wire power supply system, guide rail installation. | |||||
When the thunderstorm season is coming, lightning protection is particularly important at this time. Lightning enters the room through power lines or other ways, causing damage to people and equipment; LEIHAO Lightning Protection Company has many excellent lightning protection products, of which the surge protector of power supply is an important part. Now we will briefly introduce the parameters and uses of a first-class surge protector.
| MODEL: LH-12.5I/385-4 | LH | Lightning pick surge protector |
| 12.5 | Impulse discharge current: 12.5, 15, 20, 25, 30KA...... | |
| I | I: stands for T1 products; default: stands for T2 products | |
| 385 | Maximum continuous operating voltage: 385, 440V~ | |
| 4 | Mode: 1p, 2p, 1+NPE, 3p, 4p, 3+NPE |

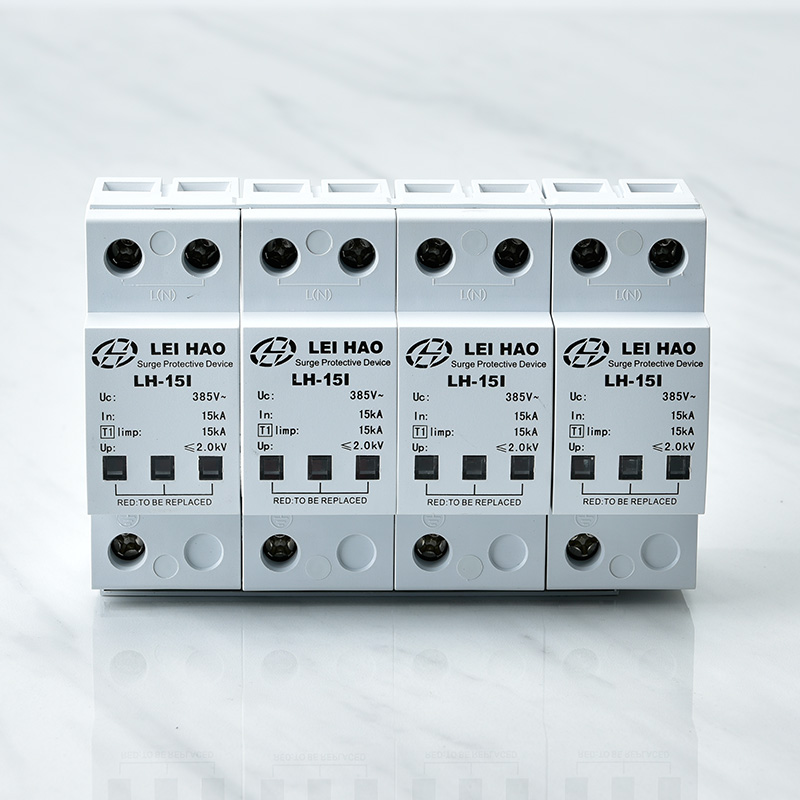

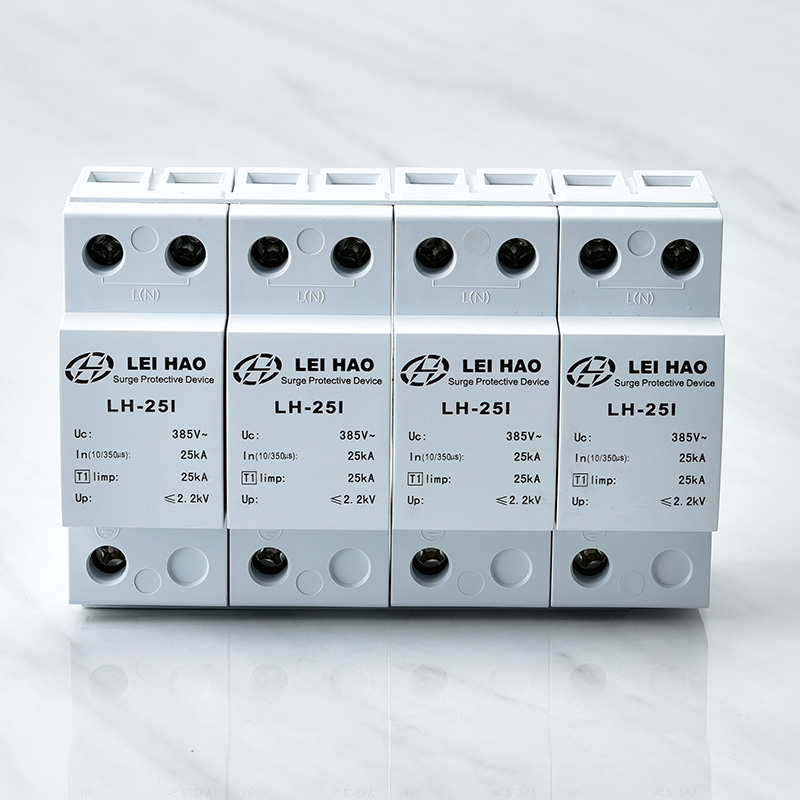

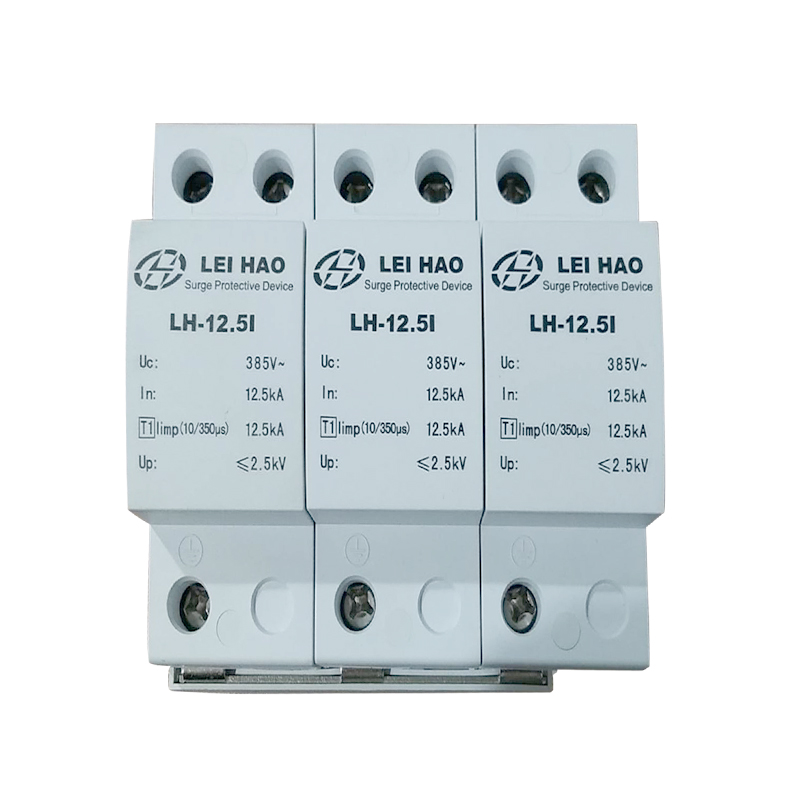

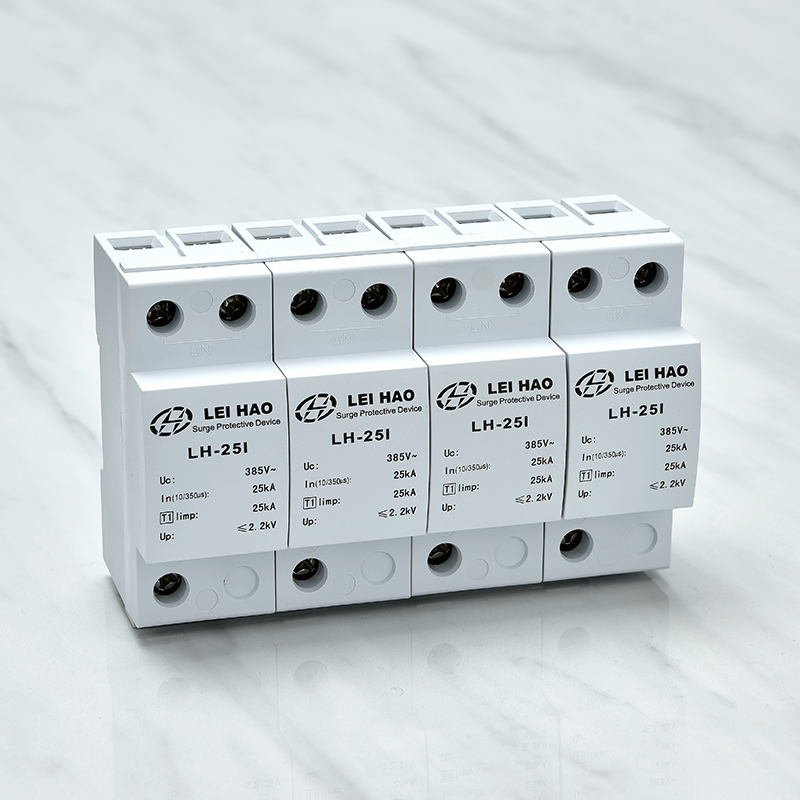

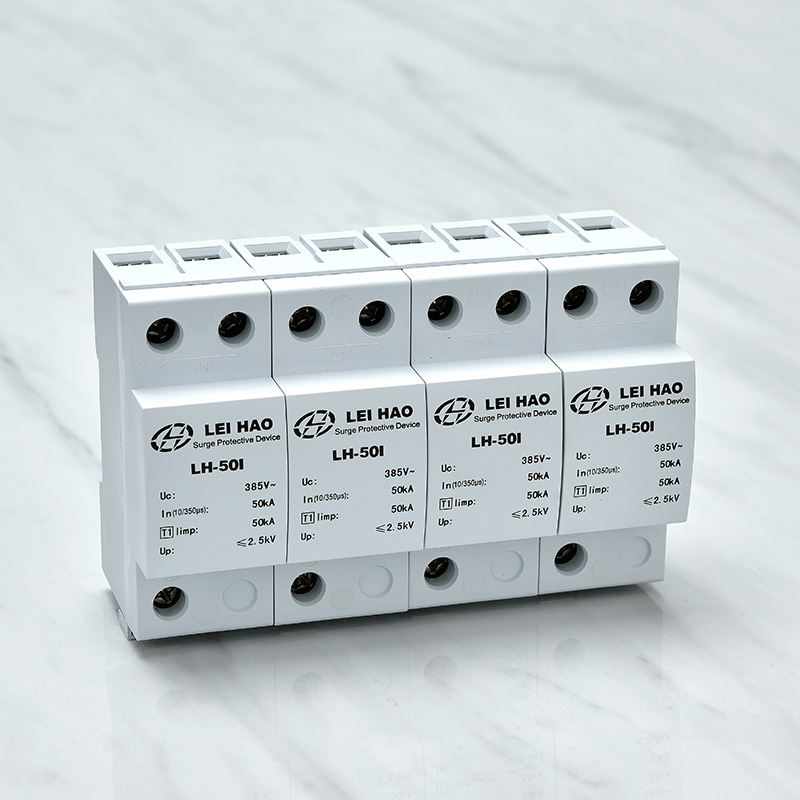

LH-12.5I/3p Maximum continuous operating voltage Uc 385V~ Nominal discharge current In 12.5KA Impulse discharge current Iimp 12.5KA Voltage protection level Up ≤2.5KV Full arc, no window, pad printing, graphiteLH-15I/4p Maximum continuous operating voltage Uc 385V~ Nominal discharge current In 15KA Impulse discharge current Iimp 15KA Voltage protection level Up ≤2.0KV Full arc, window, pad printing, chipLH-25I/4p Maximum continuous operating voltage Uc 385V~ Nominal discharge current In 25KA Impulse discharge current Iimp 25KA Voltage protection level Up ≤2.2KV Full arc, no window, pad printing, graphite(1) in the front end of the main power switch in the floor distribution box, LH-50I 4P is generally used as the primary protection of power supply; ② LH-50I 4P should also be used at the low voltage end of transformer and the front end of main power switch. ③ When the distribution box is independent outdoors, LH-50I 4P should also be used as the primary power protection.Equipment connected to AC power supply network is easily affected by many electrical problems that may be expected in unstable operation, which leads to equipment failure, life reduction and even damage. LH-15I series surge protectors are designed to meet the protection requirements of all low-voltage devices for industrial lightning surge. The product range of this series is classified by product type and power supply category (AC or DC).
1. product design standard: this product is designed according to relevant international standards IEC, and its performance meets the requirements of national standard GB 18802.1-2011 "low voltage surge protector (SPD) part 1: performance requirements and test methods of surge protector for low voltage distribution system". 2. Scope of product use: GB50343-2012 Technical Code for Lightning Protection of Building Electronic Information System 3 Selection of surge protector: The primary SPD must be set in the main distribution box at the entrance of building power supply. 4. Product features: This product has the characteristics of low residual voltage, fast response speed, large current capacity (impulse current Iimp(10/350μs) is 25kA/ line, long service life, simple maintenance and convenient installation, etc. 5.Working temperature: -25℃ ~+70℃, working humidity: 95%.Risk of voltage surges Electrical and electronic eauipment is indispensable in the daily activities of today’s businesses and individuals. Such devices are connected to the electricity grid, often exchanging data and signals through communication lines and are usually sensitive to disturbances. These interconnecting networks provide a propagation path for overvoltages. Protection against lightning and overvoltages not only ensures the safety of people,goods and equipment, but also ensures continuity of installation services. Overvoltage protection extends the life of the equipment by more than 20%, which significantly reduces the volume of electronic waste. It also reduces the power consumption of the installations, all of which translates into cost savings and environmental sustainability. OUR SERVICE: 1.quick response in before sales period help you got order. 2.excellent service in production time let you know each step we made. 3.reliable quality solve you after sale headache. 4.long period quality warranty ensure you can buy without hesitate. Quality assurance: 1. Strict control on choose of the raw material sources. 2. Speciific technology guide for the production of each product. 3. Completed quality testing system for the semi-finished products and finised products. To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
